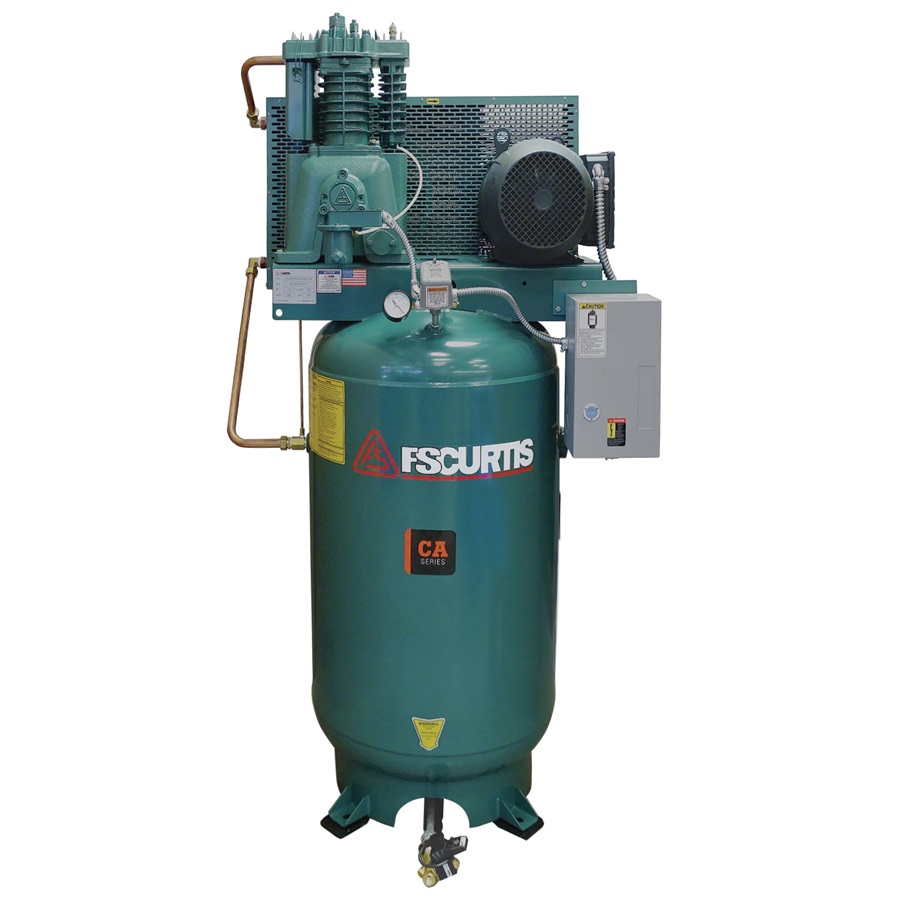

FS-Curtis 7.5HP, 2-Cyl, 2-Stage 80-Gal H.D. Air Compressor

Curtis
FS-Curtis 7.5HP, 2-Cyl, 2-Stage 80-Gal H.D. Air Compressor
Watch Videos
To view full screen, click the play button and then click the bottom right corner of video or press the "f" key.
FS-Curtis CA Series 5-15HP Reciprocating Air Compressor
FS-Curtis - Our Mission
Item#
8700-80DS
MPN#
FCA07E57V8U-A2L1XX
UPC#
728044213377
Our Price: $4,299.00
Zone 1 Zone 2 Zone 3
FREE FREE FREE
Zone Map
Ground Ship Only

CA-Series Deliver Reliable Performance

You can count on FS-Curtis, just as in 1854, producing reliable long-term, high-quality air compressors that last! Made in USA.

CA-Series ULTRAPACK 7.5HP, 2-Cyl, 2-Stage 80-Gal Heavy-Duty Vertical Model

MODEL 8700-80DS SPECS:

  • 7.5 HP
  • 2-stage
  • 80-gallon vertical ASME tank
  • 100% cast-iron compressor pump
  • 23.2 cfm @ 175 psi
  • Maximum air pressure 175 psi
  • 1053 pump RPM
  • Splash lubrication
  • 230 volt, 1 phase
  • H.D. 7.5 HP, 31-36 amp (running)* motor
  • Pre-wired and mounted magnetic starter
  • Includes Ultrapack accessories: Low-oil shut down, auto tank drain, and air-cooled belt-guard aftercooler
  • 74"H, 36"W, 25"D, ship wt: 580 lbs
  • 2-year pump/1-year unit warranty or 5-years when registered using FS-Curtis consumables

*Starting amperage may be double the running amperage. Consult your electrician and refer to manufacturer manual.

Built to order - allow 3-5 weeks lead time. Drop shipped direct from manufacturer. Normally IN STOCK at our Canfield, OH Showroom - call 1-800-321-9260 for availability.

CA-Series Deliver Reliable Performance

You can count on FS-Curtis, just as in 1854, producing reliable long-term, high-quality air compressors that last! Made in USA.

CA-Series ULTRAPACK 7.5HP, 2-Cyl, 2-Stage 80-Gal Heavy-Duty Vertical Model

MODEL 8700-80DS SPECS:

  • 7.5 HP
  • 2-stage
  • 80-gallon vertical ASME tank
  • 100% cast-iron compressor pump
  • 23.2 cfm @ 175 psi
  • Maximum air pressure 175 psi
  • 1053 pump RPM
  • Splash lubrication
  • 230 volt, 1 phase
  • H.D. 7.5 HP, 31-36 amp (running)* motor
  • Pre-wired and mounted magnetic starter
  • Includes Ultrapack accessories: Low-oil shut down, auto tank drain, and air-cooled belt-guard aftercooler
  • 74"H, 36"W, 25"D, ship wt: 580 lbs
  • 2-year pump/1-year unit warranty or 5-years when registered using FS-Curtis consumables

*Starting amperage may be double the running amperage. Consult your electrician and refer to manufacturer manual.

Built to order - allow 3-5 weeks lead time. Drop shipped direct from manufacturer. Normally IN STOCK at our Canfield, OH Showroom - call 1-800-321-9260 for availability.
