Build-Your-Own Skat Blast Cabinet Kit - Trigger Operating System

Skat Blast
Build-Your-Own Skat Blast Cabinet Kit - Trigger Operating System
  • Build-Your-Own Skat Blast Cabinet Kit - Trigger Operating System
  • Build-Your-Own Skat Blast Cabinet Kit - Trigger Operating System
Item#
6525-TG
MPN#
6525-TG
UPC#
728044192368

(0 Rating)
Our Price: $139.00
Zone Map
Zone 1 Zone 2 Zone 3
$10.00 $10.00 $10.00
In-Stock

SAVE with this kit!

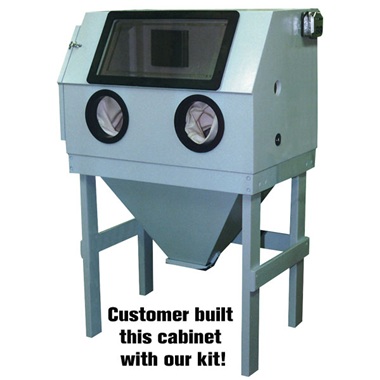

Skat Blast Build-Your-Own Trigger-Operated Cabinet Kit contains parts needed for the cabinet's operating system, plus well-illustrated Cabinet Plans to build a 34" wide x 24" deep cabinet with only two sheets of plywood. For a larger cabinet, simply increase the dimensions and build to any size. Additional items required, such as gloves, lens, light, hinge, trap door, etc - all available on our web site. You supply the plywood. We can supply the rest!

Includes:
• S-35 Power Gun - Often mistaken for a pressure blaster when using some of the high-tech abrasives. Bottom of gun has 1/4" female pipe threads for quick connection to 7 ft air hose (included) and 5/8" OD inlet at bottom of siphon head for connection to pickup hose (also included). Includes 1 medium steel nozzle and air jet installed in gun, and 2 extra medium steel nozzles for use with 10-15 cfm air (3 HP minimum - 5 HP is better).
• Siphon Hose is made of clear vinyl so you can see the abrasive flow as it is pulled from funnel of cabinet. Hose is 5/8" inside diameter by 36" long, reaches most areas of the cabinet and can be cut to size.
• Skat Blast Pickup Tube is 27" overall length with mounting hardware. Double-tube design provides a smooth, even flow of abrasive to the power gun. 5/8" OD x 18 gauge.
• 7 Ft Air Hose - High-volume, 3/8" inside diameter. Has 1/4" male brass pipe threads on each end to connect to bottom of power gun and to your incoming air supply of 10-15 cfm.
• Low Air Supply Nozzle Kit includes 3 small steel nozzles, one small air jet, and air jet gasket. This kit enables you to blast with low air consumption (4-8 cfm).
Note: it is necessary to change both nozzle and air jet (both must match when siphon blasting.)
• Build Your Own Cabinet Plans - Well-illustrated plans explain how to build a 34" wide x 24" deep cabinet with only two sheets of plywood (plus parts available through our catalog or locally). Adjust dimensions to build a cabinet to fit your needs.

Made in USA.

SAVE with this kit!

Skat Blast Build-Your-Own Trigger-Operated Cabinet Kit contains parts needed for the cabinet's operating system, plus well-illustrated Cabinet Plans to build a 34" wide x 24" deep cabinet with only two sheets of plywood. For a larger cabinet, simply increase the dimensions and build to any size. Additional items required, such as gloves, lens, light, hinge, trap door, etc - all available on our web site. You supply the plywood. We can supply the rest!

Includes:
• S-35 Power Gun - Often mistaken for a pressure blaster when using some of the high-tech abrasives. Bottom of gun has 1/4" female pipe threads for quick connection to 7 ft air hose (included) and 5/8" OD inlet at bottom of siphon head for connection to pickup hose (also included). Includes 1 medium steel nozzle and air jet installed in gun, and 2 extra medium steel nozzles for use with 10-15 cfm air (3 HP minimum - 5 HP is better).
• Siphon Hose is made of clear vinyl so you can see the abrasive flow as it is pulled from funnel of cabinet. Hose is 5/8" inside diameter by 36" long, reaches most areas of the cabinet and can be cut to size.
• Skat Blast Pickup Tube is 27" overall length with mounting hardware. Double-tube design provides a smooth, even flow of abrasive to the power gun. 5/8" OD x 18 gauge.
• 7 Ft Air Hose - High-volume, 3/8" inside diameter. Has 1/4" male brass pipe threads on each end to connect to bottom of power gun and to your incoming air supply of 10-15 cfm.
• Low Air Supply Nozzle Kit includes 3 small steel nozzles, one small air jet, and air jet gasket. This kit enables you to blast with low air consumption (4-8 cfm).
Note: it is necessary to change both nozzle and air jet (both must match when siphon blasting.)
• Build Your Own Cabinet Plans - Well-illustrated plans explain how to build a 34" wide x 24" deep cabinet with only two sheets of plywood (plus parts available through our catalog or locally). Adjust dimensions to build a cabinet to fit your needs.

Made in USA.
