Quincy 5HP 2-Stage 80-Gal Air Compressor

Quincy

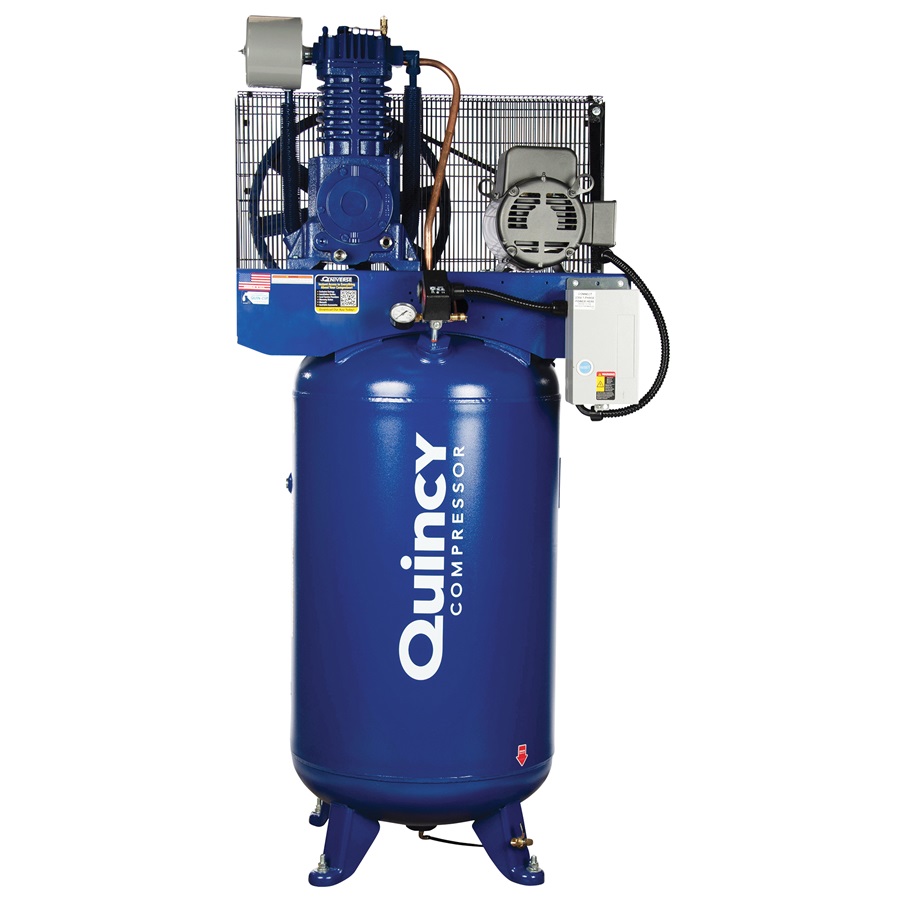

Quincy 5HP 2-Stage 80-Gal Air Compressor
Watch Videos
To view full screen, click the play button and then click the bottom right corner of video or press the "f" key.
Quincy Compressor - QT Series
Why Choose Quincy?
Compressed Air with Paint Sprayers
Item#
8805-56DS
MPN#
451CS80VCB
UPC#
791326111968
Sale $3,199.00
Reg. $3,399.00
$200.00 off
Zone 1 Zone 2 Zone 3
FREE FREE FREE
Zone Map
Ground Ship Only

High-quality, long-lasting, dependable - a great choice for any shop!

Designed and engineered for industrial applications with a pump rating of over 50,000 hours and 100% duty cycle. QT Pro Series deliver higher volumes of air while consuming less energy. QT 5, 7.5 & 10 HP models have a new pump design with longer stroke and extra cooling fins to the cast-iron cylinders. A longer stroke vs. a larger bore, along with beefed-up crankshaft and bearings, gives Quincy pumps more torque, enabling the pump to deliver consistently higher CFM throughout the PSI range. Along with quiet operation, this drops the discharge temperatures dramatically, increasing volumetric efficiency at much lower pump RPM, generating smoother operation and longer life. Quincy Air Compressors are the perfect choice to run a blast cabinet on a continual basis, or run air tools or paint spray equipment. Made in USA.

QT-5 Pro 5 HP, 2-Stage, 80-Gal Vertical - New pump design with slow RPM for long life. Includes pre-wired & mounted magnetic starter.

MODEL 8805-56DS SPECS:

  • 5 HP
  • 2-stage
  • 80-gallon vertical ASME tank
  • Cast-iron crankcase and cylinders
  • 17.4 cfm @ 175 psi
  • Maximum air pressure 175 psi
  • Low 658 pump RPM
  • Splash lubrication
  • 230 volt, 1 phase
  • 28 amps (running)*
  • Mounted & pre-wired magnetic starter
  • 74"H, 37"W, 24"D, ship wt: 685 lbs
  • 1-year warranty on the complete unit top to bottom (service centers nationwide)

*Starting amperage may be double the running amperage. Consult your electrician and refer to manufacturer manual.

Built to order - allow 2-3 weeks lead time. Drop shipped direct from manufacturer. Normally IN STOCK at our Canfield, OH Showroom - call 1-800-321-9260 for availability.

High-quality, long-lasting, dependable - a great choice for any shop!

Designed and engineered for industrial applications with a pump rating of over 50,000 hours and 100% duty cycle. QT Pro Series deliver higher volumes of air while consuming less energy. QT 5, 7.5 & 10 HP models have a new pump design with longer stroke and extra cooling fins to the cast-iron cylinders. A longer stroke vs. a larger bore, along with beefed-up crankshaft and bearings, gives Quincy pumps more torque, enabling the pump to deliver consistently higher CFM throughout the PSI range. Along with quiet operation, this drops the discharge temperatures dramatically, increasing volumetric efficiency at much lower pump RPM, generating smoother operation and longer life. Quincy Air Compressors are the perfect choice to run a blast cabinet on a continual basis, or run air tools or paint spray equipment. Made in USA.

QT-5 Pro 5 HP, 2-Stage, 80-Gal Vertical - New pump design with slow RPM for long life. Includes pre-wired & mounted magnetic starter.

MODEL 8805-56DS SPECS:

  • 5 HP
  • 2-stage
  • 80-gallon vertical ASME tank
  • Cast-iron crankcase and cylinders
  • 17.4 cfm @ 175 psi
  • Maximum air pressure 175 psi
  • Low 658 pump RPM
  • Splash lubrication
  • 230 volt, 1 phase
  • 28 amps (running)*
  • Mounted & pre-wired magnetic starter
  • 74"H, 37"W, 24"D, ship wt: 685 lbs
  • 1-year warranty on the complete unit top to bottom (service centers nationwide)

*Starting amperage may be double the running amperage. Consult your electrician and refer to manufacturer manual.

Built to order - allow 2-3 weeks lead time. Drop shipped direct from manufacturer. Normally IN STOCK at our Canfield, OH Showroom - call 1-800-321-9260 for availability.
