Champion® "PL Series" Pressure Lubricated Compressors

Champion
Champion® "PL Series" Pressure Lubricated Compressors
View Larger View Larger
Close
Champion® "PL Series" Pressure Lubricated Compressors
Our Price: $3,299.00 - $7,999.00

Details

Designed to Operate in Extreme-Duty Applications!

Champion "PL Series" is a true industrial-use air compressor. Champion is so confident in the way it is engineered and built, it offers a 5-year warranty on the pump.

The PL Series features multi-finned cylinders, dome-style pistons, gasket-free integral cylinder/head, high-density connecting rods, disc-type valves, precision flywheel, intercooler, tapered roller bearings, and oversized main bearings.

Plus, the compressor pump has pressure lubrication. An internal oil pump provides positive lubrication to all critical parts of the compressor and spin-on oil filter and internal oil inlet screen protect the pump from damaging debris. Includes dual-control for start/stop operation or continuous run. 3-phase units are wired for 230 volts - please specify if you require 460 volt.

Maximum air pressure 175 psi. 5-Year Pump Warranty - 100% year one, 90% year two, 80% year three, 70% year four, and 60% year five. (Head valves warranted for 1 year only.) 5-Year Motor and Tank Warranty (service centers nationwide). Choose the compressor best suited to fit your application. Made in USA*.

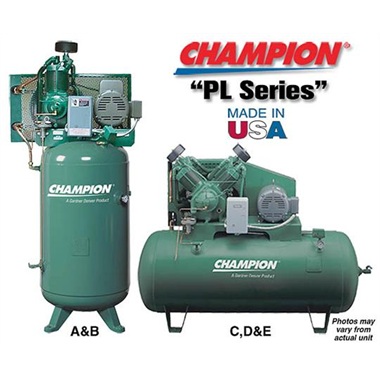

A - 5 HP, 2-Stage - Most popular heavy-use 5 HP air compressor!
Available with vertical tank (shown) or horizontal.
#8550-30DS - 5 HP, 2-Stage, 80-gal vertical, 230volt, Single Phase, 23 amps, 17.3 cfm @ 175 psi, 734 rpm, Champion Model # VPL5-8, 75"H, 32-1/2"W, 24"D, ship wt 545 lbs.
#8550-31DS - 5 HP, 2-Stage, 80-gal horizontal, 230volt, Single Phase, 23 amps, 17.3 cfm @ 175 psi, 734 rpm, Champion Model # HPL5-8, 49"H, 66-1/2"W, 23-1/4"D, ship wt 545 lbs.

B - 7.5 HP, 2-Stage - For demanding shop workloads!
#8550-32DS - 7.5 HP, 2-Stage, 80-gal vertical, 230volt, Single Phase, 31 amps, 23.1 cfm @ 175 psi, 990 rpm, Champion Model # VPL7F-8, 75"H, 32-1/2"W, 24"D, ship wt 635 lbs.

C - 10 HP, 2-Stage - Shop special - high output!
#8550-33DS - 10 HP, 2-Stage, 120-gal horizontal, 230/460volt, 3 Phase, 34.8 cfm @ 175 psi, 740 rpm, Champion Model # HPL10-12, 53-1/4"H, 70-1/2"W, 25"D, ship wt 890 lbs.

D - 15 HP, 2-Stage - Body & fab shop special!
#8550-34DS - 15 HP, 2-Stage, 120-gal horizontal, 230/460volt, 3 Phase, 49.0 cfm @ 175 psi, 1045 rpm, Champion Model # HPL15F-12, 53-1/4"H, 70-1/2"W, 25"D, ship wt 890 lbs.

E - 25 HP, 2-Stage - Large air demands? Look no further!
#8550-36DS - 25 HP, 2-Stage, 120-gal horizontal, 230/460volt, 3 Phase, 90.1 cfm @ 175 psi, 770 rpm, Champion Model # HPL25-12, 64-1/2"H, 72"W, 27-1/2"D, ship wt 1365 lbs.

Champion "PL Series" Optional Accessories:  Low-Oil Monitor - all PL units; Electric Automatic Tank Drain - all PL units; Air-Cooled Aftercooler - all PL units. Call 1-800-321-9260 for more information.

Unload or Liftgate Service is available for this equipment (extra cost, in addition to freight adder). Click on LG50 in suggestion table below for details.

Built to order - allow 3-5 days' lead time. Drop shipped direct from manufacturer.
Champion - A Gardner Denver Company


FREE SHIPPING - US-48 States - Limited Time!

*Made in the USA with both US and foreign parts.
