Champion Advantage Series Compressors

Champion
Champion Advantage Series Compressors
View Larger View Larger
  • Champion Advantage Series Compressors
  • Champion Advantage Series Compressors
  • Champion Advantage Series Compressors
Close
Champion Advantage Series Compressors
Selected items on sale
Our Price: $2,699.00 - $7,999.00
Save Up to $100.00 off
Save Up to $0.00 off
Save Up to $0.00% off
We're sorry, this item is not available.

Details

Durable and Reliable - Slow-Running for Years of Trouble-Free Service and Dependability!

Champion "Advantage Series" Compressors are your best possible value in a 2-stage reciprocating compressor. Manufactured in the USA for over 85 years, Champion, a Gardner Denver Company, strives for excellence in engineering, manufacturing, quality control, and service. If you need an air compressor whether for hobby or business, Champion is the right choice for years of trouble-free service! The Advantage Series is perfect for multiple air tools, glass bead cabinet, spray guns, or any application which requires an increased air supply or demand.

Pump features include multi-finned cylinders, dome-style pistons, gasket-free integral cylinders, high-density connecting rods, disc-type valves, precision flywheel, intercooler, tapered roller bearings, oversized main bearings, and splash lubrication.

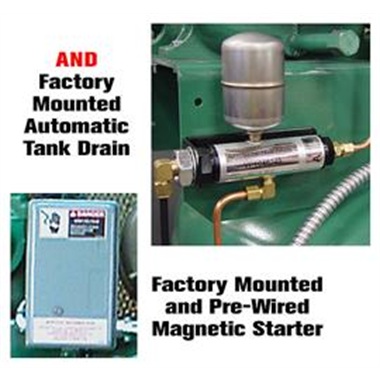

All Champion Advantage Series Compressors include factory-mount automatic tank drain, factory-mounted and pre-wired magnetic starter, factory-installed belt guard aftercooler, and low-oil monitor as standard equipment.

Maximum air pressure 175 psi. 5-Year Pump Warranty - 100% year one, 90% year two, 80% year three, 70% year four, and 60% year five. (Head valves warranted for 1 year only.) 5-Year Motor and Tank Warranty (service centers nationwide). Choose the compressor best suited to fit your application. When ordering 3-phase, please specify voltage - 230 or 460. Made in USA.

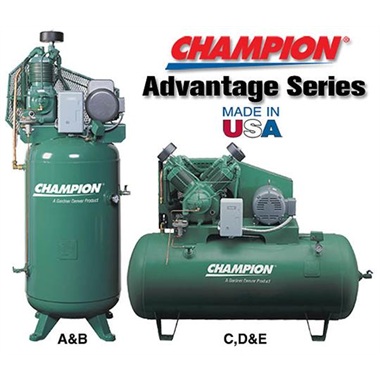

A - 5 HP, 2-Stage - The perfect shop air compressor with true 5 HP motor!
Available with vertical tank (shown) or horizontal.
#8550-80DS - 5 HP, 2-Stage, 80-gal vertical, 230volt, Single Phase, 23 amps, 17.3 cfm @ 175 psi, 710 rpm, Champion Model # VR5-8, 77"H, 33"W, 24"D, ship wt 535 lbs.
#8550-81DS - 5 HP, 2-Stage, 80-gal horizontal, 230volt, Single Phase, 23 amps, 17.3 cfm @ 175 psi, 710 rpm, Champion Model # HR5-8, 49"H, 66"W, 23"D, ship wt 535 lbs.

B - 7.5 HP, 2-Stage - The most popular 7.5 HP in our lineup!
Produces the output and years of dependable service large shops need.
#8550-75DS - 7.5 HP, 2-Stage, 80-gal vertical, 230volt, Single Phase, 31 amps, 23.1 cfm @ 175 psi, 990 rpm, Champion Model # VR7F-8, 77"H, 36"W, 24"D, ship wt 545 lbs.

C - 10 HP, 2-Stage - For heavy workloads!
Includes dual-control for start/stop mode running (normal operation) or continuous run mode for heavy workload situations to further cool the pump. Pre-wired for 230 volts, 3-phase electric. Please specify if you require 460 volt. 4-cylinder pump. Available with horizontal tank (shown) or vertical.
#8550-10DS - 10 HP, 2-Stage, 120-gal horizontal, 230/460volt, 3 Phase, 34.8 cfm @ 175 psi, 740 rpm, Champion Model # HR10-12, 55"H, 72"W, 24"D, ship wt 890 lbs.
#8550-11DS - 10 HP, 2-Stage, 120-gal vertical, 230/460volt, 3 Phase, 34.8 cfm @ 175 psi, 740 rpm, Champion Model # VR10-12, 81"H, 47"W, 30"D, ship wt 890 lbs.

D - 15 HP, 2-Stage - A real workhorse!
Includes dual-control for start/stop mode running (normal operation) or continuous run mode for heavy workload situations to further cool the pump. Pre-wired for 230 volts, 3-phase electric. Please specify if you require 460 volt. 4-cylinder pump.
#8550-15DS - 15 HP, 2-Stage, 120-gal horizontal, 230/460volt, 3 Phase, 53.7 cfm @ 175 psi, 770 rpm, Champion Model # HRA15-12, 62"H, 74"W, 28"D, ship wt 1110 lbs.

E - 25 HP, 2-Stage - Top-of-the-Line!
Includes dual-control for start/stop mode running (normal operation) or continuous run mode for heavy workload situations to further cool the pump. Pre-wired for 230 volts, 3-phase electric. Please specify if you require 460 volt. 4-cylinder pump.
#8550-26DS - 25 HP, 2-Stage, 120-gal horizontal, 230/460volt, 3 Phase, 90.1 cfm @ 175 psi, 770 rpm, Champion Model # HRA25-12, 62"H, 74"W, 28"D, ship wt 1365 lbs.

Unload or Liftgate Service is available for this equipment (extra cost, in addition to freight adder). Click on LG50 in suggestion table below for details.

Built to order - allow 3-5 days' lead time. Drop shipped direct from manufacturer.
Champion - A Gardner Denver Company


FREE SHIPPING - US-48 States - Limited Time!
