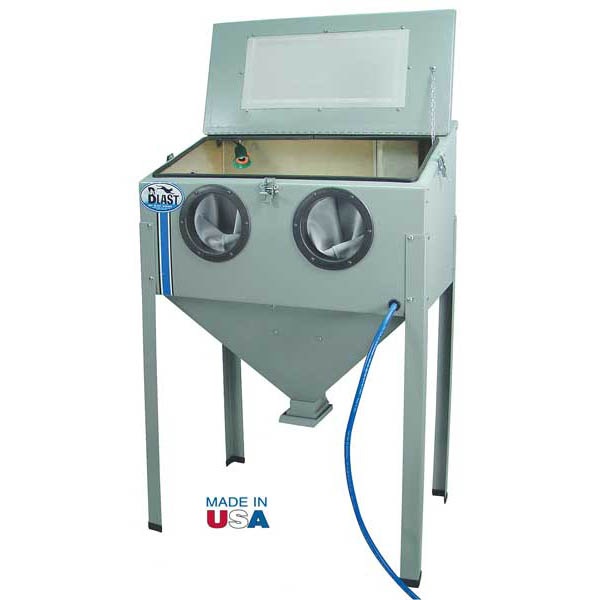

780-TL Top-Load Abrasive Blast Cabinet

Skat Blast
780-TL Top-Load Abrasive Blast Cabinet
View Larger View Larger
  • 780-TL Top-Load Abrasive Blast Cabinet
  • 780-TL Top-Load Abrasive Blast Cabinet
  • 780-TL Top-Load Abrasive Blast Cabinet
Close
780-TL Top-Load Abrasive Blast Cabinet
Item#
780-TL
MPN#
780-TL
Sale $399.00
Reg. $499.00
$100.00 off
Zone Map
Zone 1 Zone 2 Zone 3
$75.00 $90.00 $125.00
In-Stock Ground Ship Only

Details

MADE IN USA!

34" Wide, 22" Deep, 20-1/2" High Work Area

BIG WORK AREA, small price!

780-TL is so easy to use: Flip up top-loading door and pour abrasive into cabinet hopper. Load parts, close and latch door, place hands in gloves, and pull trigger on S-25 Power Gun. Rust, paint, and scale will disappear in seconds, leaving a smooth, clean finish on the blasted surface. Clean manifolds, small parts, wheels, air cleaners, plugs, molds, dies, pistons, valves, cylinder heads, and more!

Big 14-1/4" x 30" top-load door opening handles larger parts than side-loading units. Also saves 22" of valuable space in your shop - no extra space required for side doors to open! 18" deep "fast feed" funnel has spring-loaded trap door for quick clean out and change of abrasive. Unique funnel design and pickup tube assembly allow no surge, no skip operation. Plus, unlike some imports, our funnel design holds the abrasive and doesn't leak!

780-TL Skat Blast Cabinet Includes:

  • High-Velocity S-25 Trigger Power Gun
  • 3 medium steel nozzles
  • Acrylic Lens, 12" x 24" with peel-off inner lens protector
  • 24" long double-strength cabinet gloves
  • Automatic abrasive recycling system

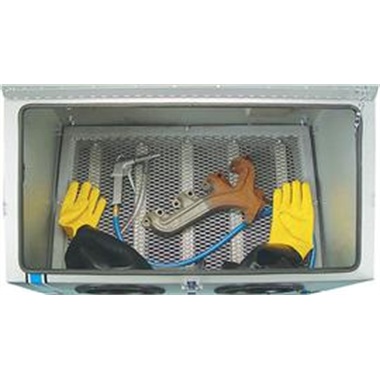

  • Expanded metal work screen
  • 22 gauge steel body, 14 gauge steel legs, plastic funnel
  • Adjustable floodlight holder (less bulb) with 6 ft cord
  • 7 ft air hose from gun to your air supply
  • 2-1/2" ferrule for hookup to your shop vac, or optional Vac-40 Vacuum
  • Quick-change trap door for fast abrasive changes

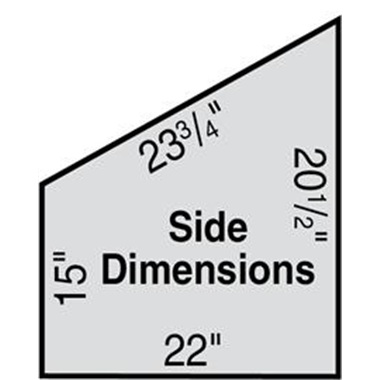

SPECIFICATIONS: Overall size - 36" wide, 23" deep, 54" high. Work area - 34" wide, 22" deep, 20-1/2" high. Requires 10-15 cfm @ 80 psi. (For 7-10 cfm order low air supply nozzle setup - #6311-04.) 125 psi max. Abrasive (requires 25 lbs) and vacuum not included - extra cost option. 22 gauge steel, 14 ga steel legs, plastic funnel. Fully Assembled except fast bolt-on legs and funnel. Ship wt:90 lbs. Ships UPS in 2 cartons. Made in USA!

Warranty

90-Day Trial, 5-Year Limited Warranty - Try our cabinet in your shop for 90 days. If you are not 100% satisfied, return the unit for a full refund or credit, less freight charges. We have sold thousands of units on this basis and believe that once you try our abrasive blast cabinet, you will LOVE IT! Cabinet and power gun carry a full 5-year warranty. Wear items such as nozzles, air jets, lens, gun suction head, hose, etc., are not guaranteed.

(People use the terms sandblast cabinets, sandblasters and sandblasting cabinets when referring to these machines. However, we do not recommend the use of silica or any type of sand in our abrasive blaster cabinets.)
